Automatic Color Steel Coil Simple Re

Overview

Basic Info.

Model NO.	Shearing machine
Transmission Method	Hydraulic Pressure
Strength	350MPa
Thickness	0.4-1.5
Transport Package	20gp*1
Specification	4T
Trademark	LIMING MACHINERY
Origin	Fujian, China (Mainland)
Production Capacity	600

Packaging & Delivery

Package Size 5000.00cm * 1200.00cm * 1500.00cm Package Gross Weight 14000.000kg

Product Description

Straightening/Cut-to-length Machine Line

1.This machine adopts PLC control, easy operation, reliable performance, beautiful appearance. Leveling shears according to customer requirements fixed length cutting sheet metal. Set the length on the Plc, the leveling shearing machine automatically cutting, saving labor cost.

2.Seven roll leveling, maintain flat sheet feeding, cut sheet surface smooth without scratches, smooth incision, no blanking, save material cost.

3.Can be added according to customer requirements

4.There is a push - pull mesh shield above the main engine to protect the safety of employees.

Our Advantages

1 More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.

Detailed Photos

Machine componet

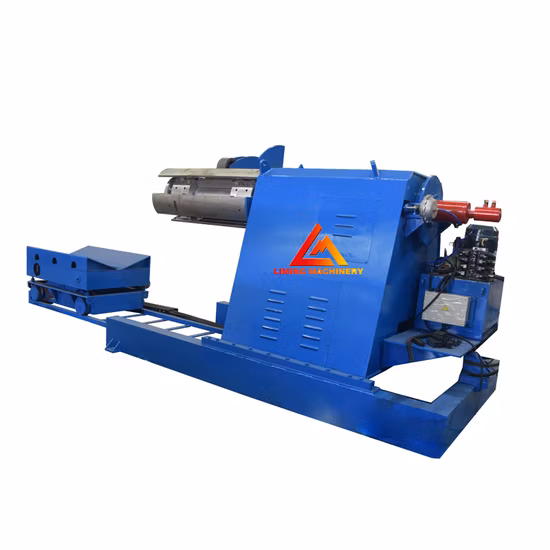

1) Hydraulic Decoiler(Selectable ):One set(Optional configuration):Hydraulic decoilerCapacity:Max.5 Ton\8 Ton\10 Ton\15 Ton or as requirement;
Hydraulic system expand coil inner hole,Frequency Inverter to regulate turning speedLink-connect expanding systemCoil Inner-diameter=510±30 mm, Coil width = Max.1250mm or 1650mm;Automatic stopping device with limited switch as assistance to control stop/start rotation

Forming station:Simple Straightening, slitting and shearing machineBbody frame made from H450 type steel by weldingFeeding Section with guide device
Rollers manufactured from Cr12 steel,CNC lathes,Heat Treatment,hard Chrome CoatedThe warranty for the rollers is 1 yearsReal forming speed 20m/min (depending on the number of punching holes)With squareness roller setup
Protection Mesh Cover Above Roll-former To Avoid Hands Go Inside

Product Parameters

1.5Ton*1250mm Hydraulic un-coiler
Description	There are different choices

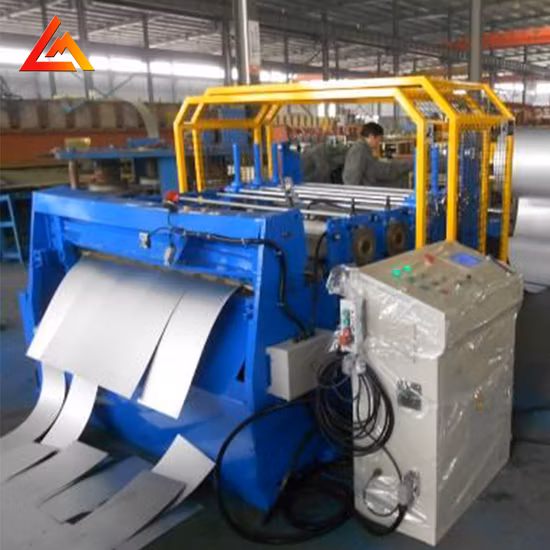

2. Straightening, slitting and shearing machine
Polythene Film-On device, un-powered
Straightening Device with 5 over 4 shafts to remove the Coil-set
Straightening& slitting motor:	11KW
Electric guillotine:	Main Motor=5.5KW
Working width:	MAX.1650mm
Work thickness	0.2-2.5mm
Protection Mesh Cover Above Roll-former To Avoid Hands Go Inside
3. PLC control system
PLC	Siemens brand (ABB brand is available if required)
Touch Screen	Siemens brand (ABB brand is available if required)
Inverter	Schneider brand (ABB brand is available if required)
Encoder	Omron brand
4.Product rack
Description(optional)	un-powered, 2 meters, 2 unitsReciling LineAuto Stacker
5. Serviceafter sell
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements. Installation: (1) If installation is needed, Liming (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation. (2) If installation is needed, the buyer shall make the following preparation before arrival of technicians. a) Position the machine in the buyer's factory. b) Prepare necessary electric wiring. c) Prepare material of trial running. d) Provide labors for assistance and installation during installation. e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.
6.Terms Of Trade
Package & Shipment: Facility water-proof packing, Control cabinet packed in wooden packing.Payment: 30%payment by T/T is required as deposit within a week since the contract signing date.70% payment by T/T is required beforethe machine be send out of factory.

Optianal Accessories1.Collect Product Table

Automatic Stacker (optional configuration)--Length: According to customized.
2.Collect Product Decoil
Hydraulic re-coiler with coil carPneumatic cylinder to press, with compartment wheel

More for you choose

Straightening/Cut-to-length Machine Line
Simple Straightening, slitting and shearing machine

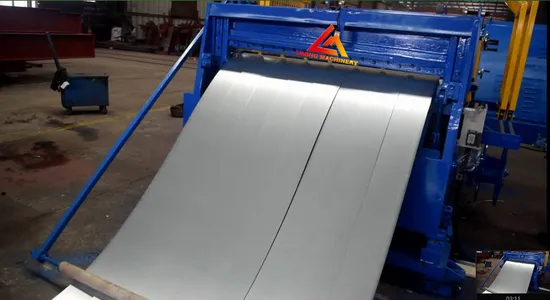

Polythene Film-On device, un-poweredFeeding Section with guide deviceStraightening Device with 5 over 4 shafts to remove the Coil-setStraightening motor:11KWOne stage of slitting rollers requiredTotal four sets of slitting tools, Max five trips at one timeExtra two sets of slitting wheels used as spare parts The below picture about the slitting rollers for your reference only

Straightening/Slitting/Cut-to-length Machine Line
1. This machine adopts PLC control, easy operation, reliable performance, beautiful appearance. Set the parameters on the PLC control cabinet, the machine automatically leveling and cutting, simple operation, save labor cost.

Maintain flat sheet feeding, cut sheet surface smooth without scratches, smooth incision, no blanking, save material cost.

2. The strip roller adopts Cr12Mov, heat treatment, durable material, smooth cutting after the strip.

3. Can be added according to customer requirements

4. There is a push - pull mesh shield above the main engine to protect the safety of employees.
